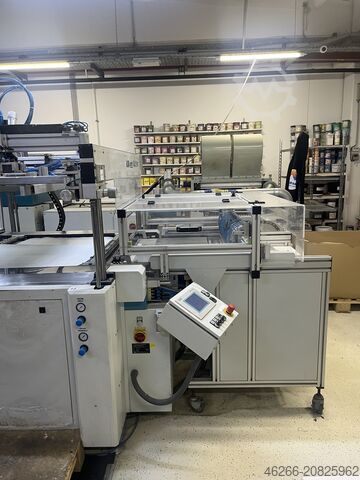

Automatische Siebdruckmaschine

Ino Ino Print SA2

Automatic screen printing machine
Screen printing machine INO Print SA2 is a modernly designed screen printing machine for
printing on different materials on a vacuum table. Easy handling, swift tool exchange, and fine
regulation of all parameters important for printing are only a few of its advantages.
Advantages and benefits of INO Print SA2
• Simple to use. Very short setup time.
• High precision.
• Optical positioning on previous print – Possibility to combine with digital technologies.
• Automatic take-off device increases productivity up to 30% and print quality as well as
renders operator’s service easier as he only takes care to load printed materials.
• Take-off could be performed from any position of the vacuum table.
Printing on various materials like paper, foils, cardboard, …
• Machine is ergonomically designed which requires minimal operator's effort.
• Drawer with printing material for simple loading.
• Screen is always in horizontal position therefore ink does not drop behind the scraper.
• Possibility of adding ink into the screen from a sitting position.
• Squeegee and scraper pneumatic holding system.
• Servo drive saves expensive air consumption.
• Max printing object height is 400 mm.
Ltjdpfx Agox Nv Nms Asa

Max. print format: 700 x 500 mm
Max. screen dimension: 1100 x 900 mm
Material thickness: Up to 400 mm (at manual off-loading)
Axial regulation x and y ±10 mm, z 100 mm
Screen retraction when loading
Adjustable up to 450 mm
Air lead 6 bar
