Glashärteofen

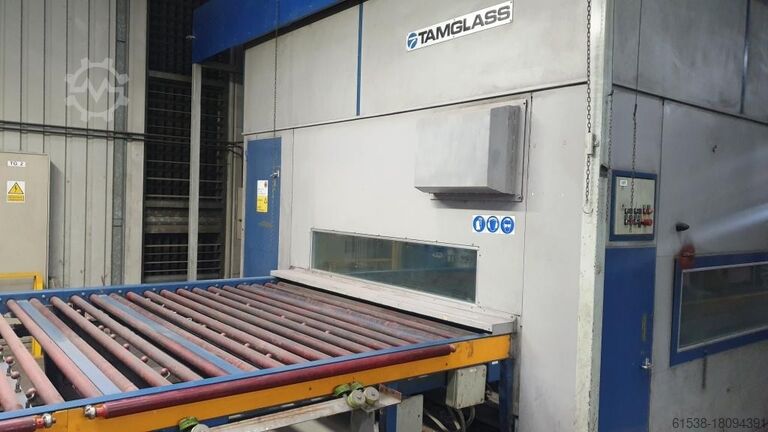

Tamglass HTF-2136-ABT-10-R

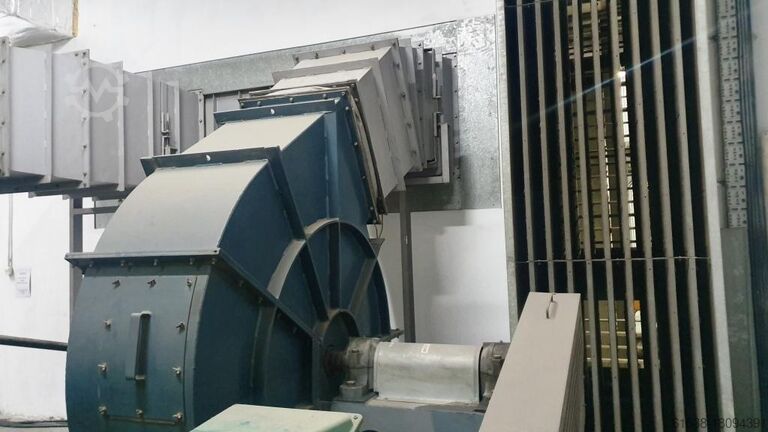

Zustand: generalüberholt (gebraucht), Baujahr: 2020, Funktionsfähigkeit: voll funktionsfähig, Tamglass HTF ProE 2136-CTS-20-L (iC) Glaston Furnace Computer / Software 2020 Glaston iControl upgr 2020 Glaston Furnace 1 PC upgrade 2023 Glaston Blower Upgrade 2020 Glaston Furnace Integrated Sca 2020 delivered year 2013 • Thermal scanner upgrade delivered year 2014 • Air balance upgrade (AAB) delivered year 2019 • New Impellers (2 pcs) for blowers KSXMB-80-3 RD/LG • New Bearing units (2 pcs) for blowers KSXMB-80-3 RD/LG • Blower vibration monitoring system upgrade (BMONi) • Frequency converters for quenching blowers (S) TECHNICAL SPECIFICATION AND DATA TAMGLASS HORIZONTAL TEMPERING FURNACE Glass thickness range: 3.8...19 mm tempering Loading area: 3.8 mm and over 2100 mm x 3600 mm Maximum glass size: ANSI Z97.1-1984 ECE R43 4.7 mm and over 2100 mm x 3600 mm (3900)* 1000 mm x 1500 mm 3.8 mm and over 2100 mm x 3000 mm - *Single sheets 300 mm longer can be tempered with reduced production rate Minimum glass size: 3.8 mm and over 100 mm x 250 mm Maximum production rates with K = 100 %, with clear float glass. 4 mm 160 m2/h 5 mm 135 m2/h 6 mm 112 m2/h 8 mm 84 m2/h 10 mm 67 m2/h 12 mm 56 m2/h 15 mm 45 m2/h 19 mm 35 m2/h In actual operation, the production rates reach 50-85 % of the maximum and depend on the glass dimensions, edgework quality, and loading area utilization. Minimum distance of sheets from each other is 50 mm. Environmental conditions: Temperature 20…40 ºC Relative humidity < 80% Fpodpowinuhjfx Ab Djr Installed power at sea level: Heating and drive 464 kW Blowers 2 x 215 kW 430 kW Total 884 kW

Zustand: sehr gut (gebraucht), Baujahr: 2006, Funktionsfähigkeit: voll funktionsfähig, Art des Eingangsstroms: Wechselstrom (AC), Ausstattung: Dokumentation/Handbuch, TAMGLASS / GLASTON HTF ProE – 2448-ADS-R 2400 x 4800 mm, 3 – 19 mm, Rechts – Links ESG Ofen / Glashärteanlage (für Low-E Glas) Fpjdpextf Dfefx Ab Der Baujahr: 2006 Schallschutzkabine inkl. 160 kW Kompressor für 3 mm Glas inkl. In gutem Zustand.
